Quarto
Documents

Branded Websites, Presentations, Dashboards, and PDFs with Quarto

WiFi: Posit Conf 2025 Password: conf2025

Find the materials at: pos.it/quarto-brand-conf25

Make sure you’ve:

1. Installed Quarto 1.8
2. Joined Discord: event portal > “Join the server” > #workshop-quarto-brand

Intro: 30 min your turn 15 minute live coding 45 min talking

welcome to I have the wifi I recommend opening the website on your own computer so you can follow along

Housekeeping

• There are gender neutral bathrooms:
  • On LL1 (Under escalators, to the right of the Learning Center)
  • On LL2 (Next to Chicago A)
• There is a meditation/prayer room located on LL2 next to Chicago A.
• The lactation room is located on LL2 next to Chicago B.
• Participants who do not wish to be photographed have red lanyards; please note everyone’s lanyard colors before taking a photo and respect their choices.
• The Code of Conduct can be found at https://posit.co/code-of-conduct. You can report Code of Conduct violations in person, by email, or by phone. Please see the policy linked above for contact information.

Discord

From the event portal, click “Join the server”, find our channel: #workshop-quarto-brand

• Ask questions
• Share code

Schedule

Time	Activity
9:00 - 10:30	Intro to Quarto & brand.yml
10:30 - 11:00	Coffee break ☕️
11:00 - 12:30	Presentations & Dashboards
12:30 - 1:30	Lunch break 🍽️
1:30 - 3:00	PDFs & Websites
3:00 - 3:30	Coffee break ☕️
3:30 - 5:00	Customizing your brand

About us

• Data Science Educator

  Developer Relations, Posit

Sara Altman

@skaltman

sarakaltman

About us

• Sr. Product Marketing Manager

  Developer Relations, Posit

Isabella Velásquez

@ivelasq

ivelasq.rbind.io

About us

Gordon Woodhull

Software Engineer, Quarto

Christophe Dervieux

Software Engineer,
R Markdown and Quarto

Introduce TAs

Meeting you where you are

These materials are pitched at someone who:

• Knows some R or Python

• Wants to create outputs that weave text and code

• Relatively new to Quarto

• Wants to learn about branded Quarto

We’ll teach you

• What Quarto is

• How to create documents, dashboards, websites, and presentations with Quarto

• How to brand those Quarto outputs with brand.yml

we designed this workshop for someone who

not assuming you know about Quarto

Workshop structure

My turn

• Lecture segments
• Feel free to just watch, take notes, browse docs, or tinker around with the code

Your turn

• Practice exercises for you
• Work on your own or with the person next to you

Getting help

• Stick your post-it note to your laptop

🟥 “I’m stuck and need help!”

🟩 “I finished the exercise”

• Ask in the Discord channel: #workshop-quarto-brand

Your turn - About you

Introduce yourself to your neighbors:

• Name
• Professional affiliation
• What do you hope to get out of this workshop?

04:00

Introduction to Quarto

• Introduction to Quarto

• Quarto documents

• Authoring Quarto

• Theme with brand.yml

Quarto is an…

open-source

scientific and technical

publishing system

built on Pandoc.

Quarto is an open-source scientific and technical publishing system built on Pandoc. Let’s break this down: Open-source: Posit believes that it’s better for everyone if the tools used for research and science are free and open. Free software means more reproducibility, widespread sharing of knowledge and techniques, and elimination of cost barriers. Scientific and technical: Scientific and technical means that Quarto has specific things for journal articles or scientific papers, like support for code execution, citations, footnotes, scientific markdown, equations, citations, crossrefs, so many things. Publishing system: Quarto is a tool for writing dynamic documents that combine code, output, and text. It can embed output from Python, R, Julia, and Observable. Quarto can be rendered to create high-quality articles, reports, presentations, websites, blogs, and books in HTML, PDF, MS Word, ePub, and more formats. Pandoc is the tool working behind the scenes to change Quarto documents to their finalized format. Quarto documents are authored with markdown, which is a plain text format. But Pandoc markdown is very rich and lets you control your document in very specific ways while being easy to read and write.

With Quarto …

you can weave together narrative and code to produce elegantly formatted output such as documents, web pages, blog posts, books, dashboards, and more.

• Create dynamic content with Python, R, Julia, and Observable
• Edit documents in your favorite editor
• Publish technical content in HTML, PDF, MS Word, and more
• Share technical content by publishing to Posit Connect, Confluence, or other publishing systems

Display data and results

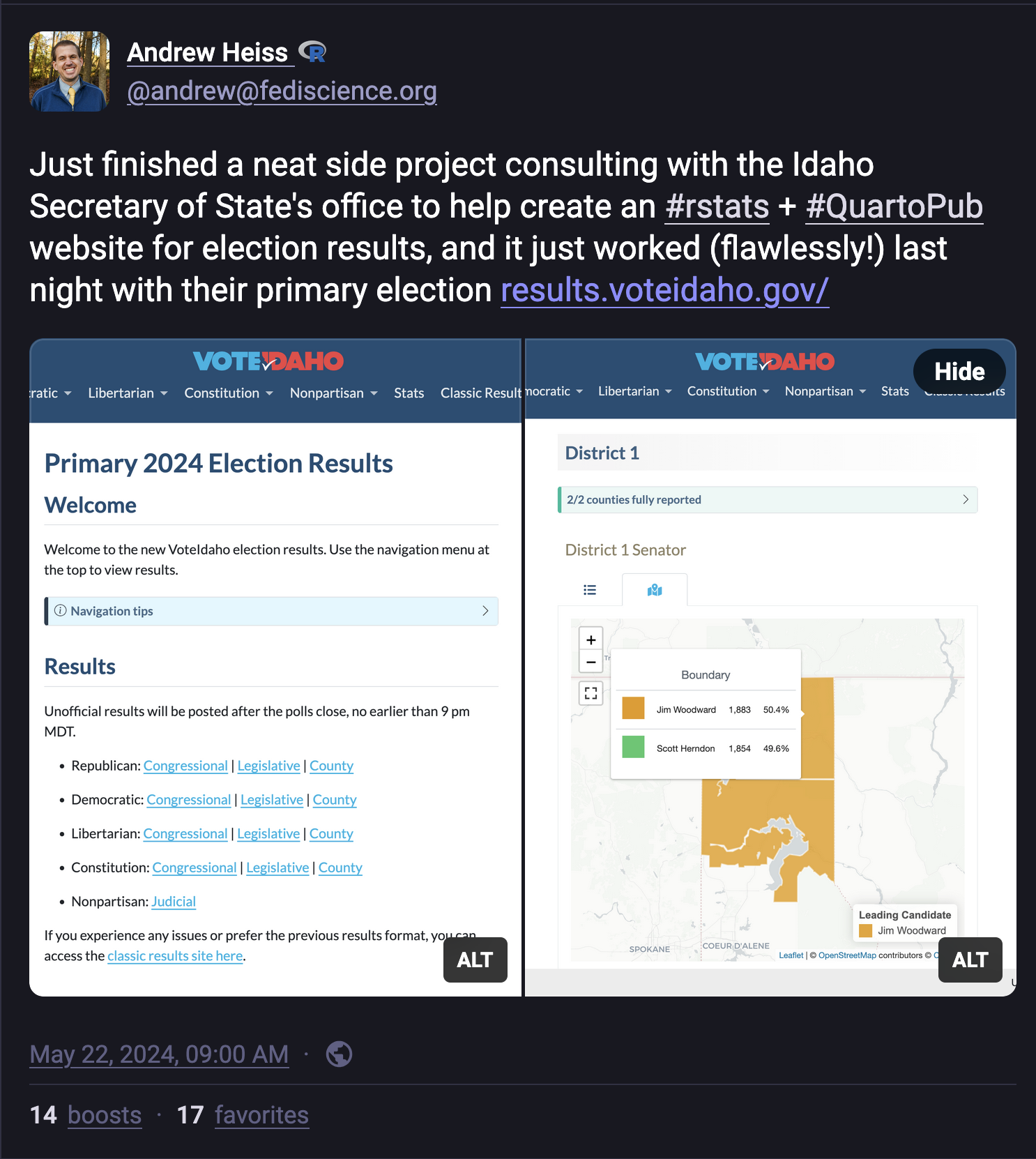

Vote Idaho Election Page by Andrew Heiss (Department of Public Management and Policy, Georgia State University) and the Idaho Secretary of State

Let’s see some examples of how people have used Quarto. Andrew Heiss, in conjunction with the Idaho Secretary of State’s office, created a Quarto website for Idaho’s primary election results.

Walk through a story

Council Housing & Neighborhood Income Inequality in Vienna by Tamara Premrov and Matthias Schnetzer (European Centre for Social Welfare Policy and Research, Austria)

Posit recently held a Scrollytelling contest. You may have seen articles in newspapers like the New York Times that display visualizations as you scroll through the document. Quarto has an extension called Scrollytelling that lets you create these sorts of stories in Quarto. This one, from folks at the European Centre for Social Welfare Policy and Research which talked about Housing & Neighborhood Income Inequality in Vienna, was one of the winners.

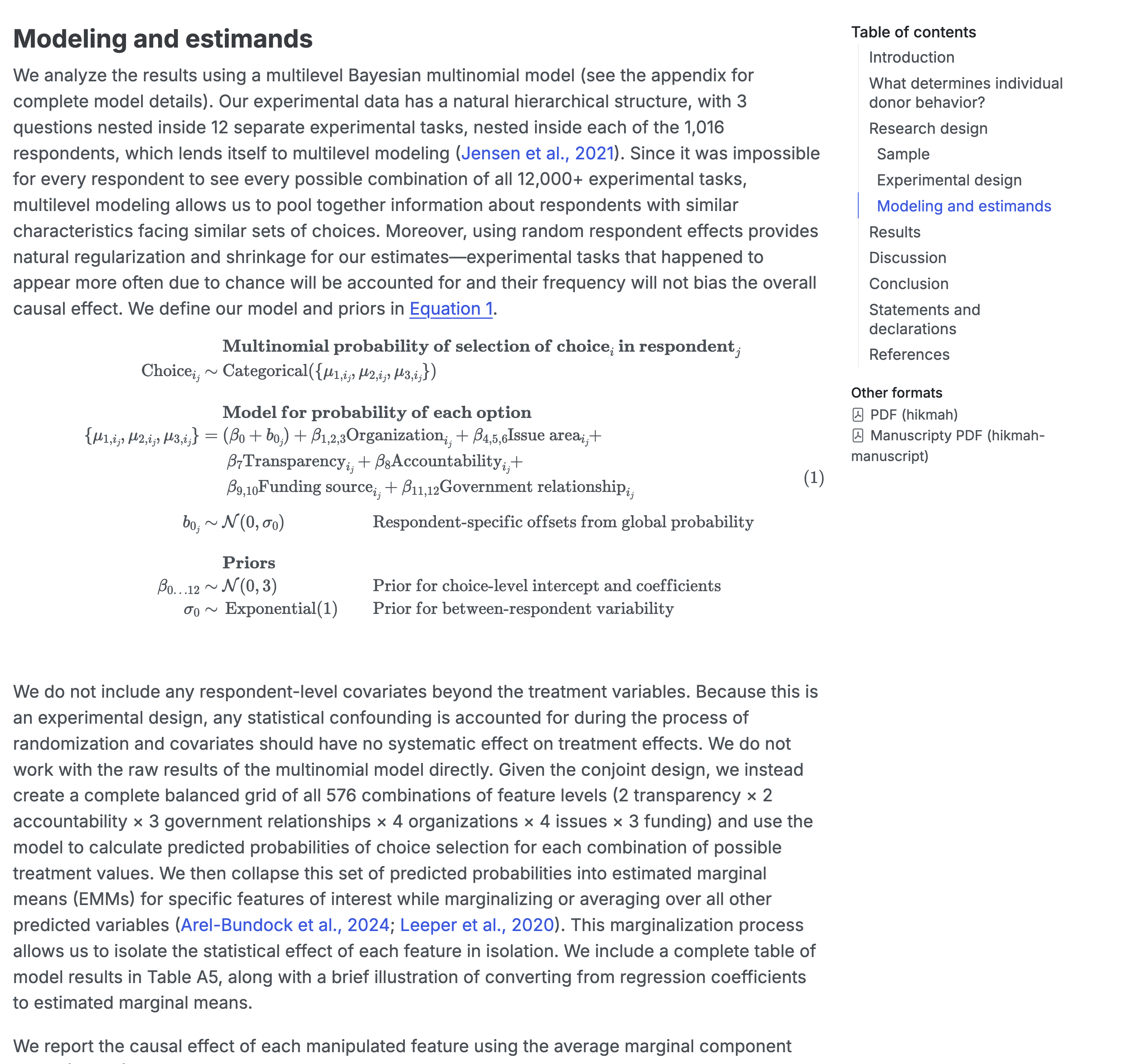

Publish papers

Navigating Hostility: The Effect of Nonprofit Transparency and Accountability on Donor Preferences in the Face of Shrinking Civic Space by Suparna Chaudhry (Lewis & Clark College, International Justice Lab at College of William & Mary) et al.

Quarto also has extensive features for writing journal articles, from diagrams and technical notation, to being able to publish according to journal standards through extensions.

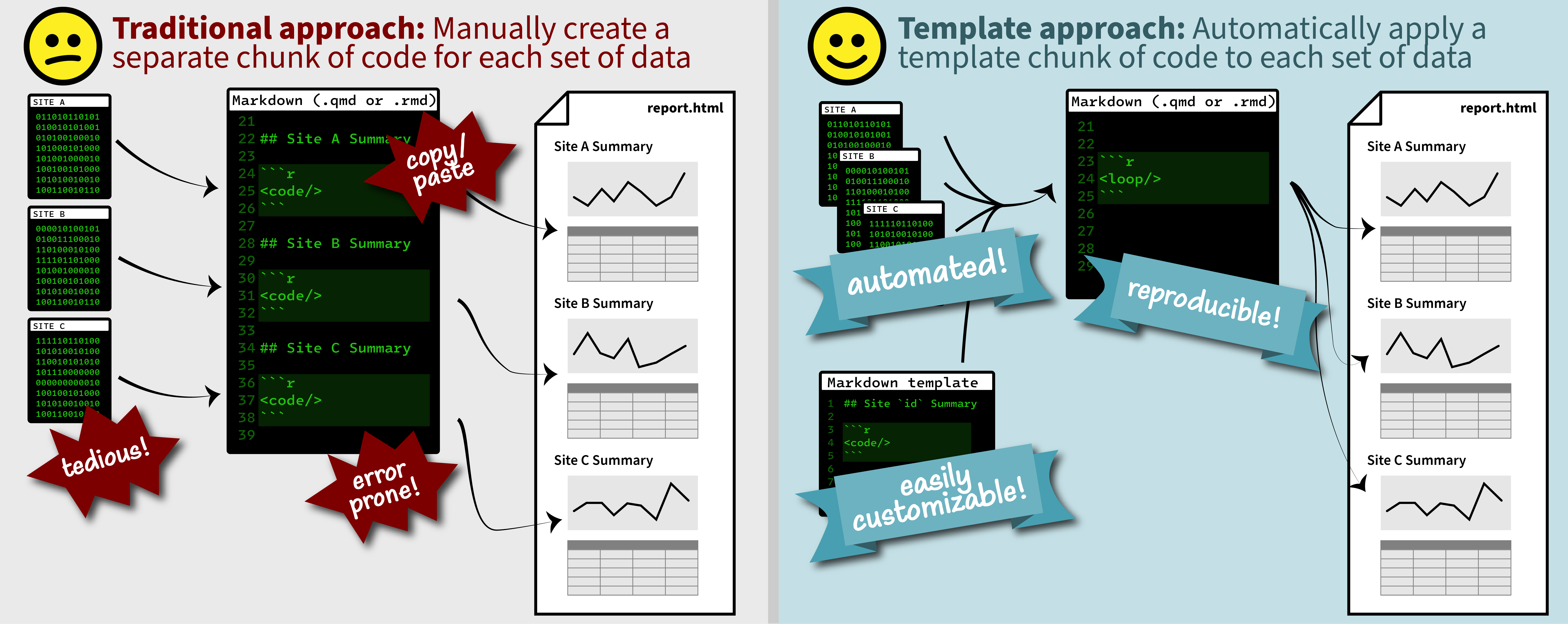

Automate and reproduce your output

Duplicating Quarto elements with code templates to reduce copy and paste errors by Althea A. Archer (United States Geological Survey)

With Quarto, you can create reports or presentations that update automatically when data changes or when you change inputs because you are creating your report with code. Use variables (parameters) to dynamically change parts of your analysis or report like to generate the same report for different regions, departments, or time periods, write reusable functions to avoid repeating code and keeps work cleaner, more consistent, and easier to maintain. The folks at United States Geological Survey have great blog posts on how they are implementing these ideas in Quarto.

Get your team on the same page

We Converted Our Documentation to Quarto by Melissa Van Bussel (Statistics Canada)

• Website for R/Python User Group
• Training resources
• Presentations

And finally, Melissa van Bussel gave a talk on how the Statistics Canada team converted not just their documentation, but training resources, presentations, and more to Quarto to streamline efforts.

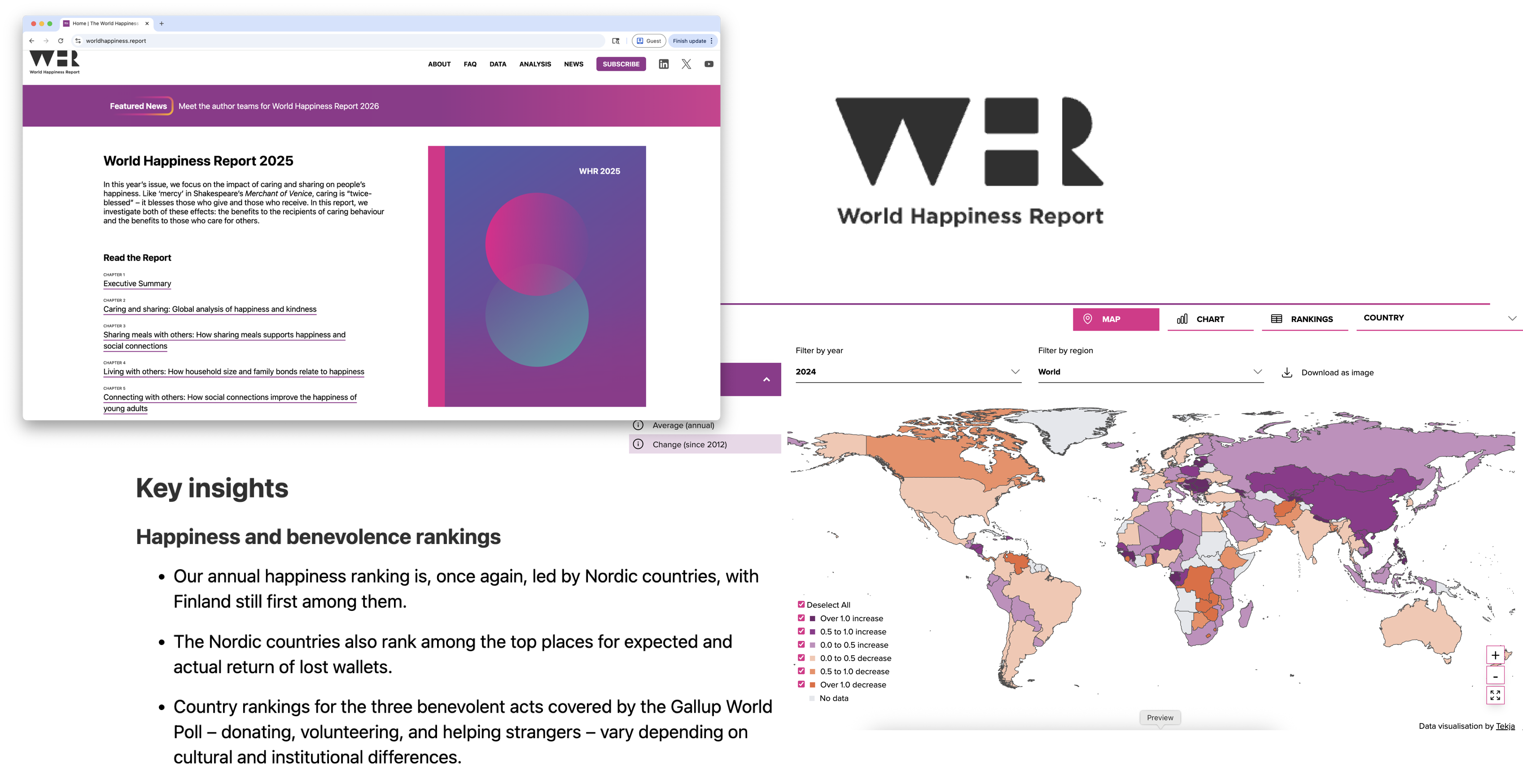

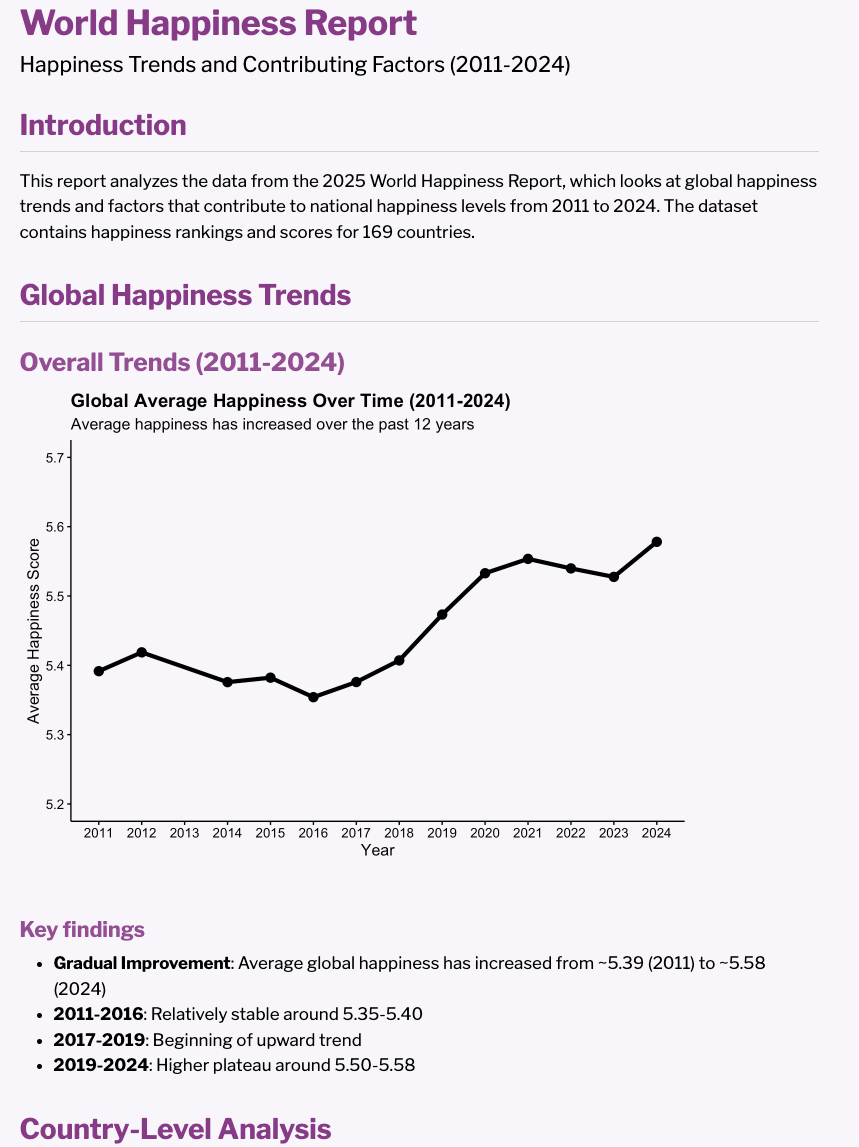

World Happiness Report

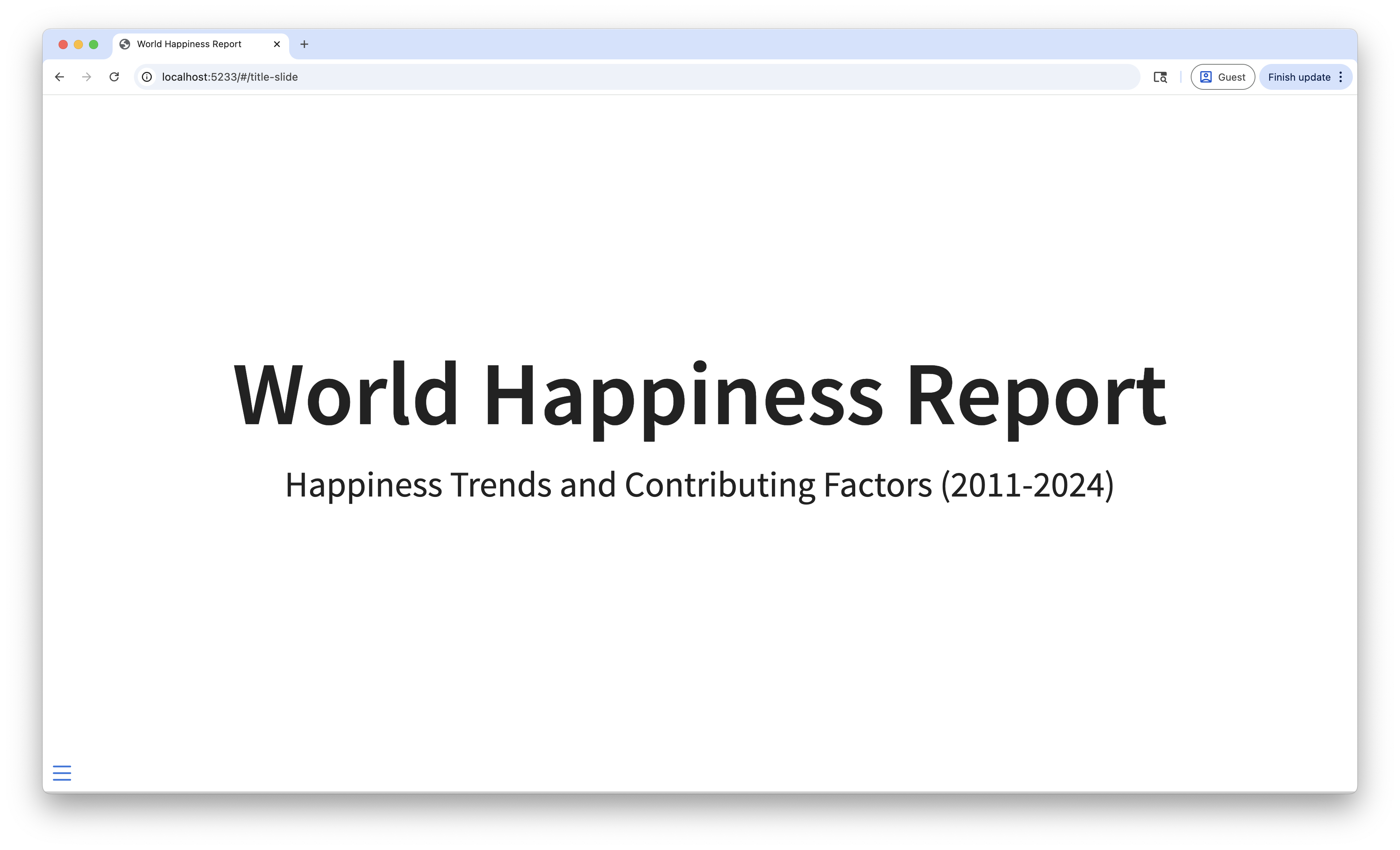

This is what you’ll work on today!

world happiness report combines and analyzes wellbeing data for around 150 countries and writes an annual report. they investigate how happy countries are, how that happiness has changed over time, and what factors explain a country’s happiness or lack thereof.

today, you’re going to make reports, dashboards, websites, and presentations with this data.

“Literate programming”

all this is possible because Quarto sits inside the broad literate programming world, which mixes narrative in text form with code for formatted outputs like documents and webpages and more. There are lots of literate programming systems that support computation, like R Markdown, Org Mode, Jupyter Book, and now there is Quarto!

Why Quarto?

• Multilingual and independent of computational systems
• Quarto comes “batteries included” straight out of the box
• Consistent expression for core features
• Extension system
• Enable “single-source publishing” — create Word, PDFs, HTML, etc. from one source
• Use defaults that meet accessibility guidelines

So, if there already exist literate programming tools out there, why create a new one? Like mentioned earlier, Quarto was built from the start to support multiple computational systems and ecosystems. You can create presentations, books, websites, and so on after installing Quarto, you do not have to install other tools to create different things. Consistent expression for core features means that regardless of whether you are making a presentation, book, or website, the syntax is written same way. And for things that aren’t part of base Quarto, there are extensions that can add further functionality. Single-source publishing, you often need to create all sorts of output, like things that are printed, on the web, on the mobile. The idea is to being able to make publications from one source. And the Quarto team thinks deeply about accessibility and how to have Quarto default to meet accessibility guidelines.

Quarto formats

Feature	Quarto
Basic Formats	html, pdf, docx, typst
Beamer	beamer
PowerPoint	pptx
HTML Slides	revealjs
Advanced Layout	Quarto Article Layout
Cross References	Quarto Crossrefs
Websites & Blogs	Quarto Websites, Quarto Blogs
Books	Quarto Books
Interactivity	Quarto Interactive Documents
Journal Articles	Journal Articles
Dashboards	Quarto Dashboards

How it works

Quarto is a command line interface (CLI) that renders plain text formats (.qmd, .rmd, .md) OR mixed formats (.ipynb/Jupyter notebook) into static PDF/Word/HTML reports, books, websites, presentations and more.

  Usage:   quarto
  Version: 1.8.24

  Description:

    Quarto CLI

  Options:

    -h, --help     - Show this help.
    -V, --version  - Show the version number for this program.

  Commands:

    render          [input] [args...]     - Render files or projects to various document types.
    preview         [file] [args...]      - Render and preview a document or website project.
    serve           [input]               - Serve a Shiny interactive document.
    create          [type] [commands...]  - Create a Quarto project or extension
    create-project  [dir]                 - Create a project for rendering multiple documents
    convert         <input>               - Convert documents to alternate representations.
    pandoc          [args...]             - Run the version of Pandoc embedded within Quarto.
    typst           [args...]             - Run the version of Typst embedded within Quarto.
    run             [script] [args...]    - Run a TypeScript, R, Python, or Lua script.
    add             <extension>           - Add an extension to this folder or project
    install         [target...]           - Installs an extension or global dependency.
    publish         [provider] [path]     - Publish a document or project to a provider.
    check           [target]              - Verify correct functioning of Quarto installation.
    help            [command]             - Show this help or the help of a sub-command.

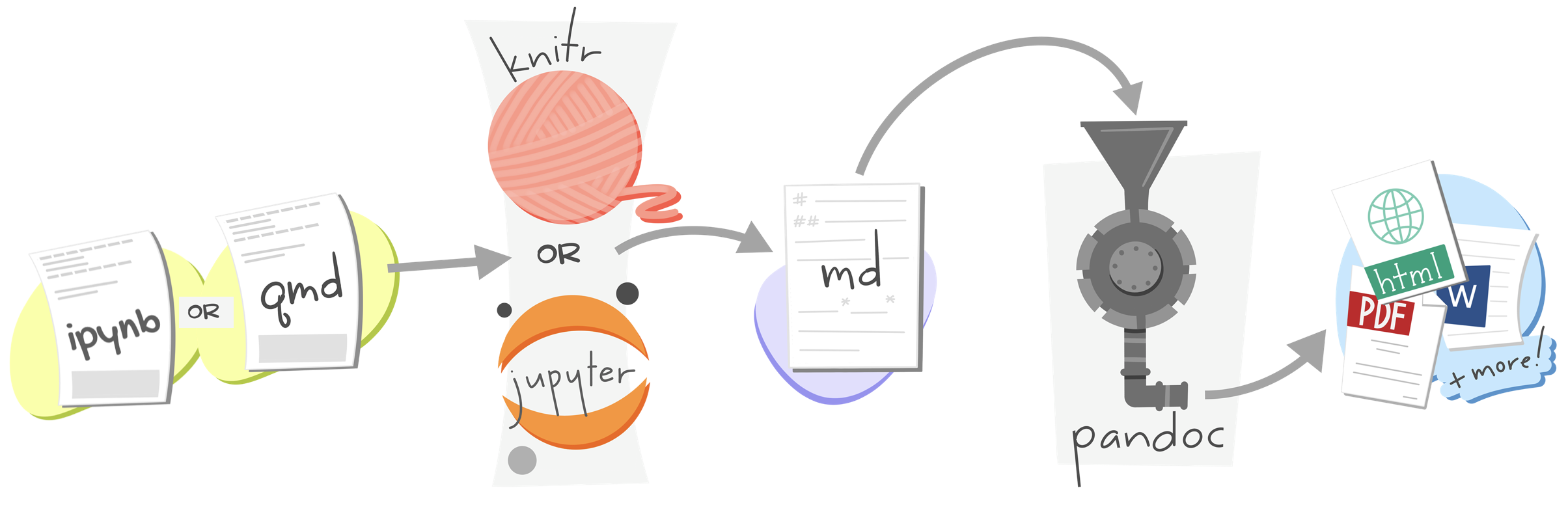

Under the hood

• jupyter or knitr evaluates Python, Julia, R, or Observable code and returns a .md file along with the evaluated code
• Quarto applies Lua filters + CSS/LaTeX which is then evaluated alongside the .md file by Pandoc and converted to a final output format

Environment options

Let’s walk through your options for today.

1. Posit Cloud - RStudio
2. GitHub Codespace - VS Code
3. Local installation

Posit Cloud has R, RStudio, Quarto, packages, installed. You just need a free account. But I will delete in a few days. If you prefer Python, there is a GitHub Codespace. It takes many minutes to load so please open it up as soon as you can if you’d like to go this route. The packages will not come preinstalled, but the instructions are on the website. Finally, you can always install Positron, RStudio, or VS Code locally, but you will also need R or Python installed. You’ll also have to install the packages and download the repo materials. And for VS Code, you’ll need to install the Quarto extension. So, if you do not have these set up, I recommend going with Posit Cloud or GitHub Codespace for now, and coming back to the materials after the workshop.

Your turn

Go to the workshop website and click on Setup in the sidebar.

pos.it/quarto-brand-conf25

Follow the setup instructions at the bottom.

05:00

Quarto workflow

• Open a .qmd file.
• Preview/render the document.
• Make a change and preview/render again.

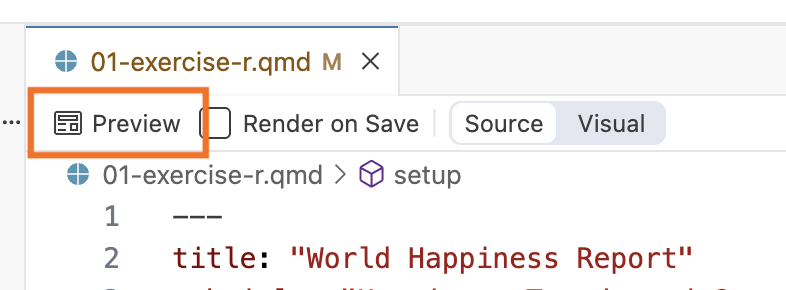

Render/preview

Terminal

quarto preview

Cmd/Ctrl + Shift + K

Your turn

• Open 01-exercise-r.qmd or 01-exercise-py.qmd.
• Preview/render the document.
  • Posit Cloud: You may be asked to allow pop-ups.
• Edit the title and preview/render again.

05:00

show how to add a code chunk

Positron/vs code insert code cell, cmd shift i RStudio green button, cmd option i

Quarto documents

• Introduction to Quarto

• Quarto documents

• Authoring Quarto

• Theme with brand.yml

Anatomy of a Quarto document

.qmd file format with three components:

1. YAML: Metadata

2. Text: Markdown

3. Code: R, Python, Observable, and Julia

Weave it all together, and you have beautiful, powerful, and useful outputs!

A Quarto document contains three types of content: a YAML header, code chunks, and markdown text.

Anatomy of a Quarto document

Metadata: YAML

my-document.qmd

---
title: "World Happiness Report"
format: html
---

• “Yet another markup language”
• Metadata of your document
• Demarcated by three dashes (---) on either end
• Uses key-value pairs in the format key: value

Quarto documents usually start with an (optional) YAML header demarcated by three dashes on either end. The basic syntax of YAML uses key-value pairs in the format key: value. It controls the output of the document and contain metadata for your document. YAML fields commonly found in headers of documents include metadata like author, subtitle, date as well as customization options like theme, fontcolor, fig-width, etc.

Anatomy of a Quarto document

Text: Markdown

my-document.qmd

---
title: "World Happiness Report"
format: html
---

This analysis explores the World Happiness Report dataset.

• Markdown is a lightweight language for creating formatted text
• Quarto is based on Pandoc and uses its variation of markdown as its underlying document syntax

Markdown is a lightweight markup language for creating formatted text using a plain-text editor. Quarto uses markdown syntax for text.

Anatomy of a Quarto document

Text: Markdown

The `whr_2025.csv` dataset contains data from the [**2025 World Happiness Report**](https://www.worldhappiness.report/).

The whr_2025.csv dataset contains data from the 2025 World Happiness Report.

Anatomy of a Quarto document

Text: Markdown

Markdown syntax	Output
*italics* and **bold**	italics and bold
superscript^2^ / subscript~2~	superscript2 / subscript2
~~strikethrough~~	strikethrough
`verbatim code`	verbatim code

Anatomy of a Quarto document

Code

my-document.qmd

---
title: "World Happiness Report"
format: html
---

This analysis uses data from the [**2025 World Happiness Report**](https://www.worldhappiness.report/).

```{python}
from plotnine import ggplot, aes, geom_col

(
    ggplot(df, aes(x = "country", y = "score"))
    + geom_col()
)
```

Anatomy of a Quarto document

Code

my-document.qmd

---
title: "World Happiness Report"
format: html
---

This analysis uses data from the [**2025 World Happiness Report**](https://www.worldhappiness.report/).

```{python}
from plotnine import ggplot, aes, geom_col

(
    ggplot(df, aes(x = "country", y = "score"))
    + geom_col()
)
```

• Code chunks begin and end with three backticks (usually)
• Code chunks are identified with a programming language in between {}

Code chunks are identified with three backticks, the language in curly brackets, and can have optional chunk options identified by the hashpipe at the beginning of the line within the chunk.

Anatomy of a Quarto document

Inline code executes code within Markdown

my-document.qmd

```{python}
countries = 147
```

The number of countries in the dataset `{python} countries`.

Results in:

The number of countries in the dataset is 147.

Anatomy of a Quarto document

Code can include optional chunk options, in YAML style, identified by #| at the beginning of the line

---
title: "World Happiness Report"
format: html
---

This analysis uses data from the [**2025 World Happiness Report**](https://www.worldhappiness.report/).

```{python}
#| echo: false
from plotnine import ggplot, aes, geom_col

(
    ggplot(df, aes(x = "country", y = "score"))
    + geom_col()
)
```

Code chunks can have optional chunk options identified by the hashpipe at the beginning of the line within the chunk.

Anatomy of a Quarto document

Code can include optional chunk options, in YAML style, identified by #| at the beginning of the line

Option	Description
eval	Evaluate the code chunk
echo	Include the source code
warning	Include warnings
include	Include code and results

Other options: https://quarto.org/docs/computations/execution-options.html

Your turn

• Open 01-exercise-r.qmd and run the first three code chunks (in order).
• Preview the file.
• Add a #| include: false chunk option to the second chunk (global-trends). Preview the file and note the differences.
• In the YAML, add an author field and add your name. Preview the file.
• Change code-fold to be true. Preview the file.
• Edit the first paragraph to (1) make something bold by surrounding the text with ** and (2) use inline code instead of hardcoded values for the number of countries. You can use the following code to calculate the number of countries.

• R
• Python

length(unique(whr$country_name))

whr['country_name'].nunique()

05:00

Authoring Quarto

• Introduction to Quarto

• Quarto documents

• Authoring Quarto

• Theme with brand.yml

Images and links

Markdown syntax	Output
<https://quarto.org>	https://quarto.org
[Quarto](https://quarto.org)	Quarto


Tables

```{markdown}
| Right | Left | Default | Center |
|------:|:-----|---------|:------:|
|    12 | 12   | 12      |   12   |
|   123 | 123  | 123     |  123   |
|     1 | 1    | 1       |   1    |
```

Right	Left	Default	Center
12	12	12	12
123	123	123	123
1	1	1	1

Tables

```{markdown}
| Right | Left | Default | Center |
|------:|:-----|---------|:------:|
|    12 | 12   | 12      |   12   |
|   123 | 123  | 123     |  123   |
|     1 | 1    | 1       |   1    |

: Table Column Widths {tbl-colwidths="[10,30,30,30]"}
```

Table Column Widths

Right	Left	Default	Center
12	12	12	12
123	123	123	123
1	1	1	1

Divs and Spans

For further customization, you can add classes, attributes, and other identifiers to content using divs and spans.

Divs

::: {.border}
This adds the "border" class to some content.
:::

Spans

[This is some text]{.class key="val"}

For future customization, you can add classes, attributes, and other identifiers to content using Divs and Spans. Some are built into Quarto, and you can define your own, as well.

Divs

Callout blocks

my-document.qmd

:::{.callout-tip}

Note that there are five types of callouts, including:
`note`, `tip`, `warning`, `caution`, and `important`.

:::

Tip

Note that there are five types of callouts, including: note, tip, warning, caution, and important.

use callout blocks to draw attention to some information. callouts use the div syntax

Divs

Multiple columns

my-document.qmd

::: {layout-ncol=2}

![](earth.jpg)

Photo by <a href="https://unsplash.com/@nypl?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash">The New York Public Library</a> on <a href="https://unsplash.com/photos/planet-earth-close-up-photography-yEauzeZU6xo?utm_content=creditCopyText&utm_medium=referral&utm_source=unsplash">Unsplash</a>
:::

Photo by The New York Public Library on Unsplash

Divs

Tabsets

my-document.qmd

::: {.panel-tabset group="language"}
## R

`library(dplyr)`

## Python

`import pandas as pd`
:::

• R
• Python

library(dplyr)

import pandas as pd

Spans

my-document.qmd

This is text that is [red]{style="color:red;"}.

This is text that is red.

You can also apply styles to inline text by creating spans. Use square brackets to surround the text and curly brackets for the style you would like.

Changing formats

my-document.qmd

---
title: "World Happiness Report"
format: html
---

Changing formats

my-document.qmd

---
title: "World Happiness Report"
format: revealjs
---

You will see many examples of this throughout the workshop!

Your turn

• Add an important callout box to the introduction summarizing the report’s findings.
• In the first paragraph, link to the World Happiness Report website (https://www.worldhappiness.report/) where it says “2025 World Happiness Report”.
• Change some text to the color "#eb068c".

05:00

Theme with brand.yml

• Introduction to Quarto

• Quarto documents

• Authoring Quarto

• Theme with brand.yml

HTML Theming

Quarto includes 25 themes from the Bootswatch project:

• default
• cerulean
• cosmo
• cyborg
• darkly
• flatly
• journal
• litera
• lumen
• lux
• materia
• minty
• morph
• pulse
• quartz
• sandstone
• simplex
• sketchy
• slate
• solar
• spacelab
• superhero
• united
• vapor
• yeti
• zephyr

How to Apply HTML Theming

Provide the custom theme under theme in the YAML heading:

my-document.qmd

---
theme:
  - flatly
---

However, we often want a custom theme

to match your organization’s or your own personal branding. and you often want to use that same theme over and over, for different kinds of outputs

https://www.worldhappiness.report/

Unified branding with a simple YAML file

Create reports, apps, dashboards, plots and more that match your company’s brand guidelines with a single _brand.yml file.

brand.yml is a simple, portable YAML file that codifies your company’s brand guidelines into a format that can be used by Quarto, Python and R tooling to create branded outputs. Our goal is to support unified, branded theming for all of Posit’s open source tools—from web applications to printed reports to dashboards and presentations—with a consistent look and feel.

Branding can be frustrating

But brand.yml makes it easier

1. Define branding in a single _brand.yml file.

2. Apply that branding across almost all Quarto formats.

brand.yml also works with Shiny!

---
config:
  look: handDrawn
  theme: neutral
---
flowchart LR
    by{brand.yml}
    by-->quarto[Quarto]
    quarto-->quarto-html
    quarto-->quarto-pdf
    quarto-html-->quarto-websites[Websites]
    quarto-html-->quarto-presentations[Presentations]
    quarto-html-->quarto-dashboards[Dashboards]
    quarto-html-->quarto-emails[Emails]
    quarto-pdf-->quarto-typst[Typst]

    by-->R
    R-->r-bslib["{bslib}"]
    r-bslib-->r-thematic["{thematic}"]
    r-bslib-->r-shiny["Shiny for R"]
    r-bslib-->r-rmd["R Markdown"]
    r-bslib-->r-pkgdown["pkgdown"]
    %% r-thematic-->r-ggplot2["{ggplot2}"]
    %% r-thematic-->r-plot["{plot}"]

    by-->Python
    Python-->py-brand_yml["brand_yml"]
    py-brand_yml-->py-shiny[Shiny for Python]
    py-brand_yml-->py-plots[seaborn, matplotlib, etc.]

    classDef implemented fill:#8CE3A0,stroke:#0A2911,color:#0A2911;
    classDef partial fill:#A8E5B9,stroke:#4B8A5D,color:#0A2911;
    classDef in-progress fill:#B3D7FF,stroke:#00254D,color:#00254D;
    classDef highlighted fill:#FFE8DB,stroke:#612200,color:#612200;

    class quarto-websites,quarto-presentations,quarto-dashboards,quarto-typst,py-brand_yml,py-shiny,r-bslib,r-shiny,r-rmd,r-pkgdown implemented;
    class r-thematic,py-plots partial;
    class by highlighted;

    click quarto href "https://prerelease.quarto.org/docs/authoring/brand.html"
    click quarto-typst href "https://quarto.org/docs/output-formats/typst.html" "Typst in Quarto"
    click quarto-presentations href "https://quarto.org/docs/presentations/revealjs/" "Reveal.js in Quarto"
    click quarto-dashboards href "https://quarto.org/docs/dashboards/" "Dashboards in Quarto"
    click r-shiny href "https://shiny.posit.co/"
    click r-bslib href "https://rstudio.github.io/bslib/"
    click r-thematic href "https://rstudio.github.io/thematic/"
    click r-ggplot2 href "https://ggplot2.tidyverse.org/"
    click r-rmd href "https://rmarkdown.rstudio.com/"
    click py-shiny href "https://shiny.posit.co/py/"
    click py-brand_yml href "pkg/py/"

brand.yml works with a variety of open source projects, including all the Quarto outputs we’ll talk about today. as well as Shiny for R and Shiny for Python. This means you can define your organization’s branding in a brand.yml file once, and then apply it all over relatively effortlessly.

over the course of this workshop, we’ll use the same brand file to apply to all our outputs

brand.yml elements

• meta: Identifying information, name of the company, URLs, etc.
• logo: Files or links to the brand’s logos.
• color: Colors in the brand’s color palette.
• typography: Fonts for different elements.
• defaults: Additional context-specific settings.

_brand.yml structure

_brand.yml

meta:
  name: World Happiness Report
  link:
    home: https://www.worldhappiness.report/

logo:
  images:
    icon:
      path: images/whr_logo.png
      alt: World Happiness Report icon.
  small: images/whr_logo.png

color:
  palette:
    dark-purple: "#93358c"
    light-purple: "#f8f6fb"
    teal: "#04afaf"
    dark-blue: "#086992"
    hot-pink: "#eb068c"
    light-blue: "#1aade4"

  background: light-purple
  foreground: black
  primary: dark-purple
  secondary: hot-pink
  tertiary: light-blue
  dark: black

typography:
  fonts:
    - family: Libre Franklin
      source: google
      weight: [400, 700]

  base:
    family: Libre Franklin
    weight: 400

  headings:
    family: Libre Franklin
    weight: 700
    color: dark-purple

  link:
    color: primary
    decoration: none

define your brand’s color palette and map your palette to the roles colors play. the semantic colors – primary, foreground, etc

if this seems like a lot of details, don’t worry! we will show you how to make your own file later. for now, it’s enough to just have a general understanding of the different parts

How to apply brand.yml to Quarto

1. Define branding in _brand.yml.
2. Save in the root directory of your Quarto project.

Quarto will detect the presence of _brand.yml and automatically apply the brand to all documents of the supported formats in the project.

If your brand file has a different name or lives in a subdirectory, use the brand key.

my-document.qmd

---
title: "World Happiness Report"
subtitle: "Happiness Trends and Contributing Factors (2011-2024)"
format: html
brand: org_theme.yml
---

use this if you have a file named something other than brand.yml or it lives elsewhere.

Disable brand.yml

To turn off brand.yml for a document, use brand: false.

my-document.qmd

---
title: "World Happiness Report"
subtitle: "Happiness Trends and Contributing Factors (2011-2024)"
format: html
brand: false
---

brand shortcode

Access some brand.yml values with a shortcode.

my_document.qmd

{{< brand color primary >}}

you’ll see an example of this during the presentations section

Your turn

1. In the workshop repo, there’s a file named 04-exercise.yml. Rename the file to _brand.yml and rerender your Quarto document. What changes?

2. Change some of the variables in the _brand.yml file and rerender to see how your theme changes. You can reset the file by copying and pasting it from here.

05:00

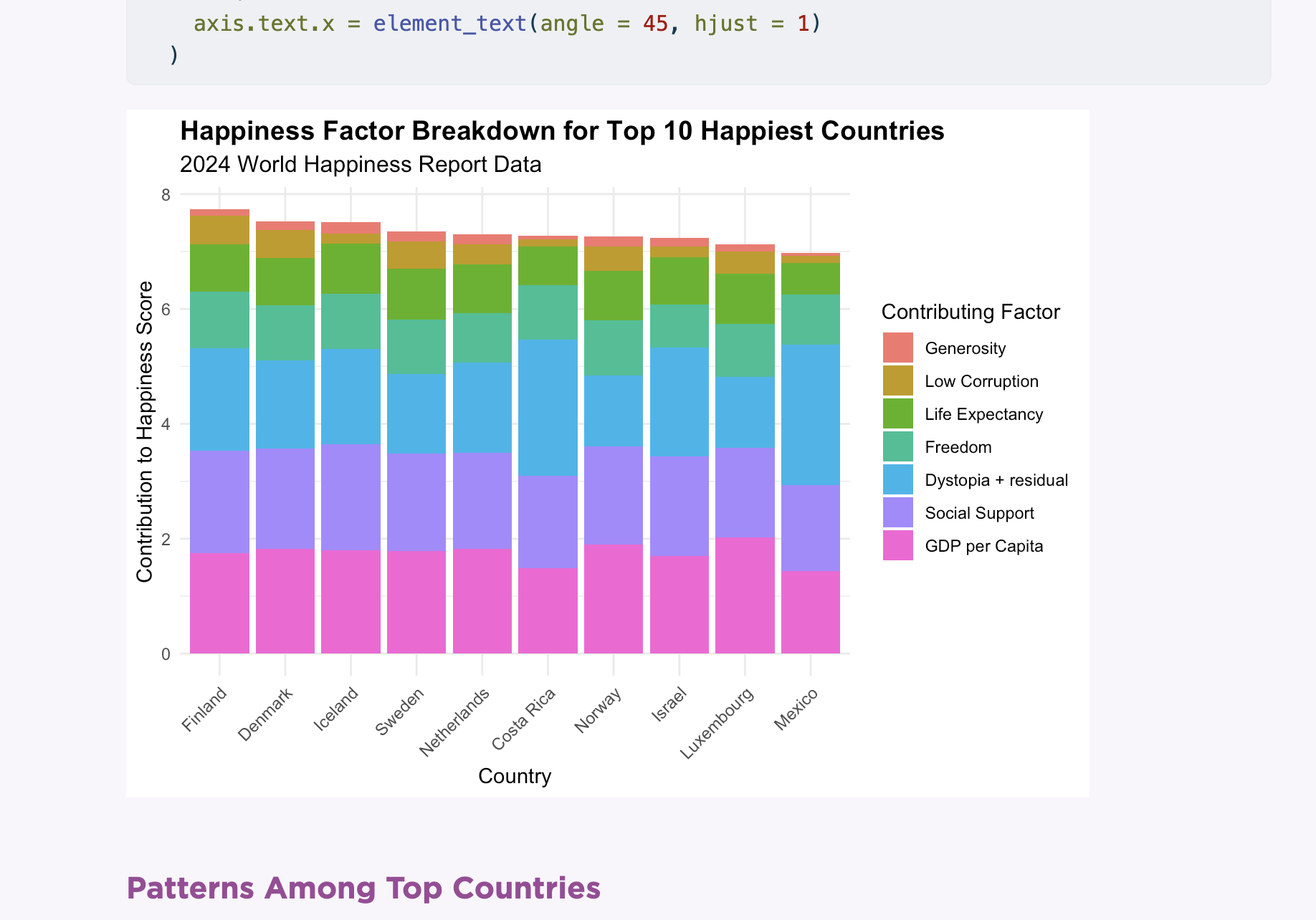

What about plots?

The plots, at least for the R version, are unbranded. how can we apply brand.yml to plots too?

Theme helpers

The quarto packages contain theme helpers that apply branding to plots.

• R
• Python

library(quarto)

my_theme <- theme_brand_ggplot2("_brand.yml")

from quarto import theme_brand_plotnine

my_theme = theme_brand_plotnine('_brand.yml')

There are other theme helpers for other plotting libraries

R: https://quarto-dev.github.io/quarto-r/articles/theme-helpers.html

Python: https://github.com/quarto-dev/quarto-python?tab=readme-ov-file#theme-helpers

Your turn

• R
• Python

1. In the first code chunk of 01-exercise-r.qmd, replace theme_minimal() with theme_brand_ggplot2(). You will need to supply a brand file path ("_brand.yml").

2. Re-render and see what changes.

1. In the first code chunk of 01-exercise-python.qmd, add theme_brand_plotnine() right after theme_minimal(). You will need to supply a brand file path ("_brand.yml").

2. Re-render. Does anything change? What if you change foreground in _brand.yml to hot-pink? Re-render with and without theme_brand_plotnine().

05:00

The R function applies theme_minimal().

brand.yml packages

Access and apply specific brand elements.

• R
• Python

library(brand.yml)

brand <- read_brand_yml("_brand.yml")

brand$color$primary

from brand_yml import Brand

brand = Brand.from_yaml("_brand.yml")

brand.color.primary

brand.yml packages

Use the R or Python brand.yml package to create a brand file from a string.

• R
• Python

library(brand.yml)

as_brand_yml("
  meta:
    name: Example Brand

  color:
    primary: '#FF5733'
    secondary: '#33FF57'
")

from brand_yml import Brand

brand = Brand.from_yaml_str(
  """
  meta:
    name: Example Brand

  color:
    primary: '#FF5733'
    secondary: '#33FF57'
  """
)

Your turn

1. Read in _brand.yml with read_brand_yml() (R) or Brand.from_yaml() (Python) to a variable named brand.
2. Change the color of the points and line in the global trends plot to the brand’s teal color. Use code like the following.

(Make sure to first remove #| include: false from the chunk, if it’s still there).

• R
• Python

geom_line(color = brand$color$palette$blue)

geom_line(color = brand.color.palette.blue)

05:00

if there’s time, go over this

the r function automatically applies theme_minimal()

Why brand.yml?

• Consistent branding with minimal effort.
• Common syntax across different outputs. Reduces duplication.
• Easy collaboration.
