Deploying reproducible analytics environments for regulated use cases

posit::conf(2025) tutorial

James Black & Orla Doyle , Doug Kelkhoff , Michael Mayer , Rafael Pereira

2025-09-16

Welcome!

Your facilitators

Doug Kelkhoff

Michael Mayer

Rafael Pereira

Orla Doyle

James Black

Today

• Till 10.30am: A reflection on conversations to date
• 10.30am: ☕ Coffee break
• 11am: Hands-on
• 12.30pm: 🍲 Lunch
• 1.30pm: Hands-on part 2
• 2pm: Small group session
• 3pm: ☕ Coffee break
• 3.30pm: Small group session part 2
• 4.30pm: Wrap up

Our aim

• Explore challenges in provisioning R environments for regulated industries
• Evaluate different approaches
• Foster dialogue
• Share experiences

A little about you

Link to slido

Why This Matters

Reproducibility as the foundation for trust in Pharma

Reproducibility = Trust

• Required by FDA, EMA, PMDA, GxP

• Repeatable results ⇒ credibility & compliance

• Without it ⇒ risk, rework, delays

Reproducibility is foundational for audits and long-term credibility.

Pharma’s Legacy Struggles

• Monoliths, manual validation

• “Validation tax”: bloated, slow pipelines

• Two environments: exploratory vs validated

Duplicated effort and inconsistencies when re-running work for submissions.

Containers Change Everything

• Frozen, versioned execution environments

• Consistency across dev → validation → submission

• Isolate deps (R, Python, SAS); runs the same everywhere

They enable all of this, but can feel like a mystery — so we’ll show them in action today

Beyond Containers

Containers are the backbone, but not the whole story, there’s a whole ecosystem around them:

• Managed package repos ⇒ governance & trust

• Snapshot versions ⇒ no surprises in re-runs

• Audited jobs ⇒ capture runtime metadata

• Infrastructure as Code ⇒ environments are reproducible end-to-end

While we can’t touch everything today, we’ll touch on some of those points today

Rafa’s & Appsilon’s Perspective

Reproducibility is not only a regulatory requirement it’s the foundation that lets science move fast and responsibly.

• Reproducibility = compliance × innovation

• Containers = scalability + sustainability

• One backbone: validated & exploratory zones

• Modular, cloud-native Scientific Environments

You’ve got to roll with it!

A summary of experiences at Novartis.

Orla Doyle & James Black

Adopting new tools

• At Novartis we needed the {rbmi} package for multiple imputation
• We weren’t able to reproduce our results
• The underlying algorithm is deterministic so this was unexpected
• The magnitude of the difference was enough to change the scientific conclusions

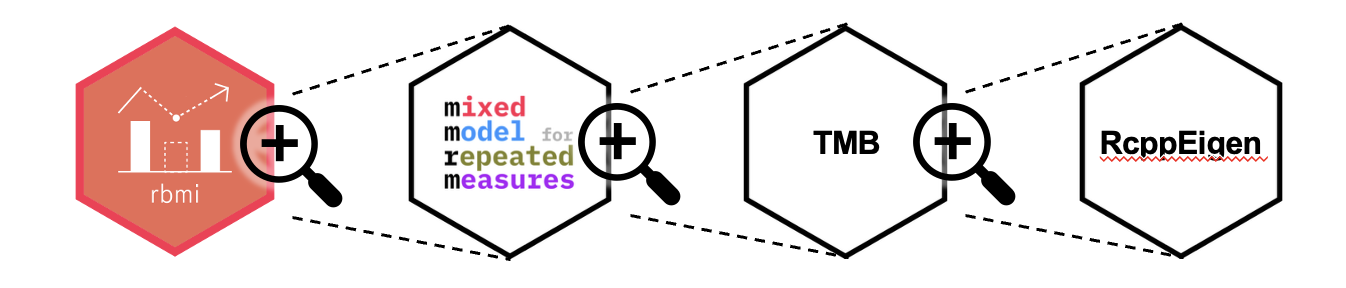

Reproducibility Detective Work

Did we set the seed? Yes!
Is this related to hardware? No!
Is this a problem with a specific OS linear algebra library? No!

Open-source in action

Unlike closed-source solutions, we can examine the source code and collaborate in a transparent manner between developers and maintainers.

• {rbmi} issue: https://github.com/insightsengineering/rbmi/issues/420
• {mmrm} issue: https://github.com/openpharma/mmrm/issues/462
• {TMB} issue: https://github.com/kaskr/adcomp/issues/398

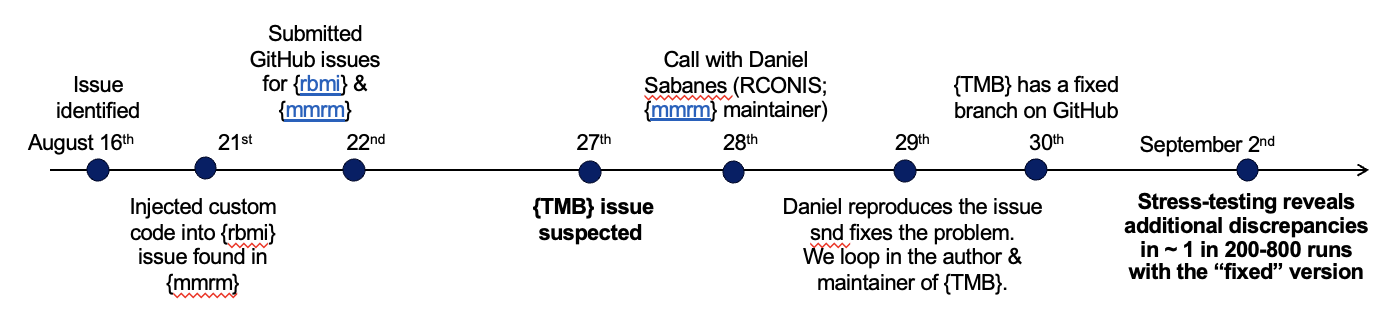

Collaborated with package maintainers to implement the fix

• ~3 weeks from issue identification to solution

• Fix deployed at source

• Highly collaborative and engaged package maintainers - THANK YOU!!

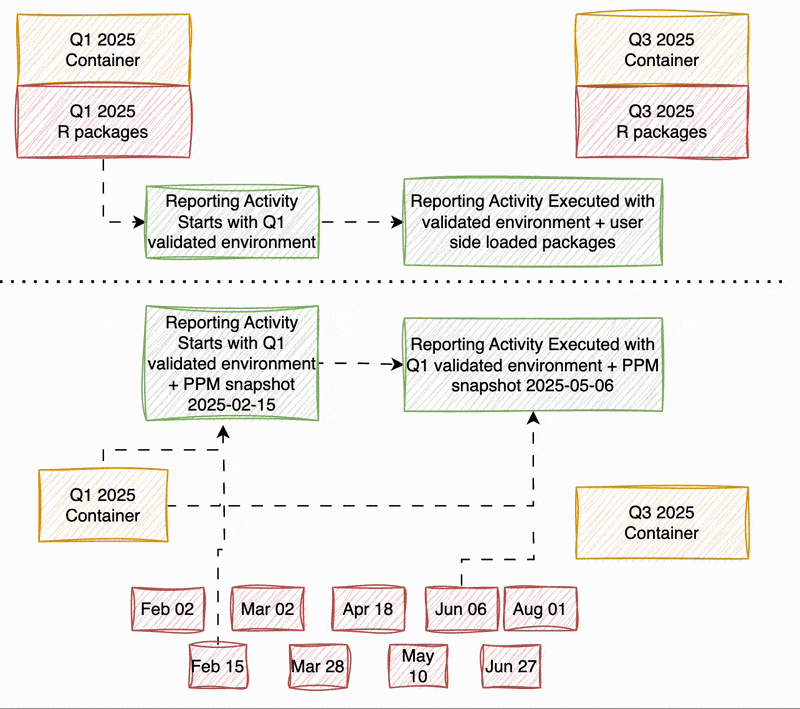

Thawing frozen environments

Legacy

R package validation is coupled to the container

New SCE

R package validation is de-coupled from the container, and many R package cohorts validated against a single container.

Conclusions

• The packages we rely on are in a constant state of flux: this is a feature not a bug!
• Our approach to package management needs to be fit-for-purpose and enabling timley access to the latest versions

Industry perspectives

Sustainable Software at Roche

Balancing rigor with effective data science

Software quality is a risk, but so are outdated software and reluctant data scientists.

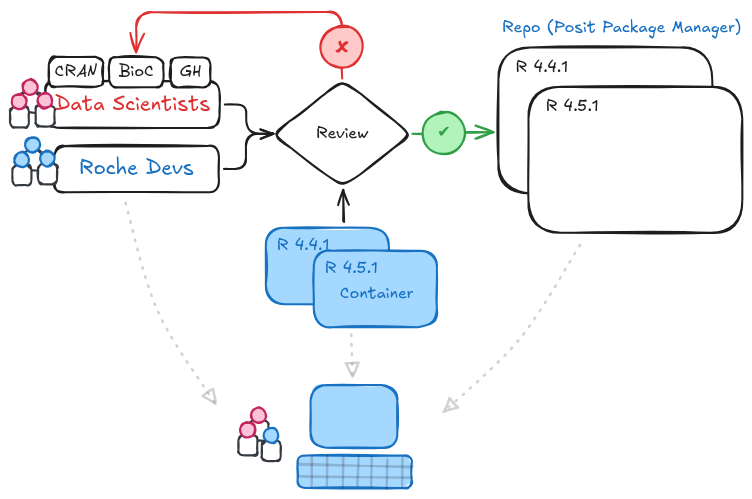

Automating the busy work

speaker: Doug * automated quality checks: high bar for documentation & code coverage * manual review: community adoption, author reputation, test quality

Being rigorous is a lot of work, but most of it can be automated

success

• Report produced as CI artifact
• Package published to internal Posit Package Manager

requires remediation

• Package requires manual review
• Support team R experts review package, either
  ✅ justifying gaps
  ❌ or rejecting


The R Validation Hub

Who we are

• Started here! R/Pharma 2018
• Operating under the R Consortium
• Delivered a white paper that outlines what R validation could look like.
• Launched {riskmetric}, {riskassessment} shiny app

The R Validation Hub

Next!

• RVH tools re-imagined:
  {val.meter}, {val.report}, {val.repo}
• Building a public metric repository

The R Validation Hub

Building consensus

The R Validation Hub

Building consensus

options(
  repos = repo,
  val.criterion.repos = repo,
  available_packages_filters =
    package_filter(check_errors == 0 & percentile(downloads) >= 0.25)
)

available.packages()
#> ℹ excluding 3 packages according to package filtering policy

install.package(poor_quality_pkg)
#> Error in `install.packages()`:
#> ! required packages are excluded due to package filters
#>   "poor_quality_pkg"
#> ℹ To explain, use `val.criterion::last_rejected()`

Hands on section

Aims for this session

• Explore considerations when designing an R computing environment
• Understand trade-offs with each design choice, often trading flexibility, reproducibility and complexity.
• See and test a few examples of setups along the way.

Logging in

Small group session

A chance to design with your peers.

There is no industry standard for deliverying environments

• We want to hear your proposals!

Goal

Deliverable 1:

• Who are the key stakeholders to a regulated R environment?
• Are you aiming to solve specific pain points?

Deliverable 2:

• Whiteboard a proposed architecture to test and provision ‘post risk review’ packages
• Highlight key experiences. E.g. updating packages, new packages, internal vs CRAN, etc, adding or updating unix level dependencies, etc

Part 1: In the next hour

We will divide into 4 groups;

• Whiteboard a high level architecture
• You decide whether you map out the entire architecture, or tackle specific ke problems!
• Be prepared after the coffee break to present for 10 minutes!

Part 2: Presentations

• Each group has 10 minutes to present with 5 minutes for questions
• Focus on what you think is most useful to share
  • That could be going deep into an end to end architecture OR you could share a high level architecture, and focus in on key pain points you’ve discussed and plans to mitigate them
• Please make sure to flag any impact or deeper dives you felt were needed, with stakeholders spanning from IT Quality to end-users.
